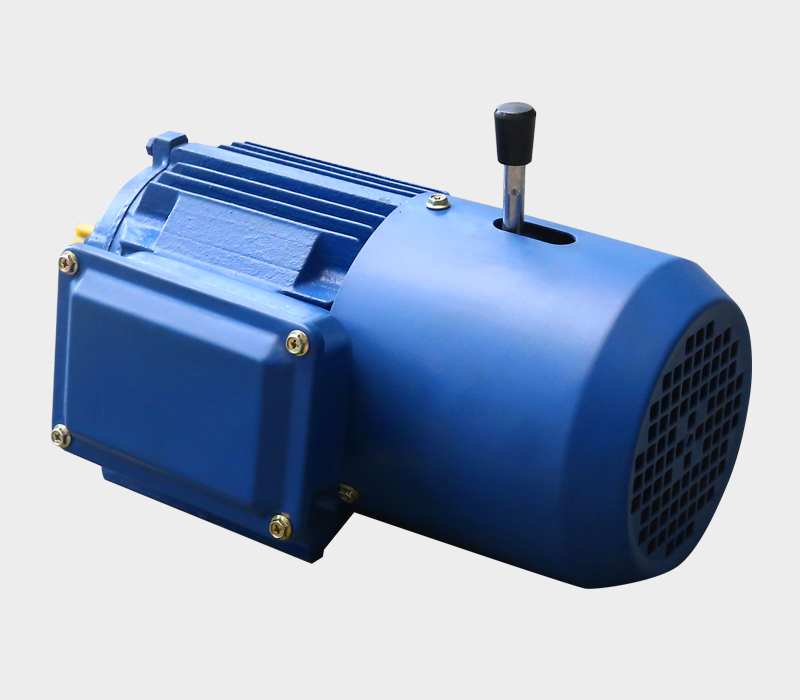

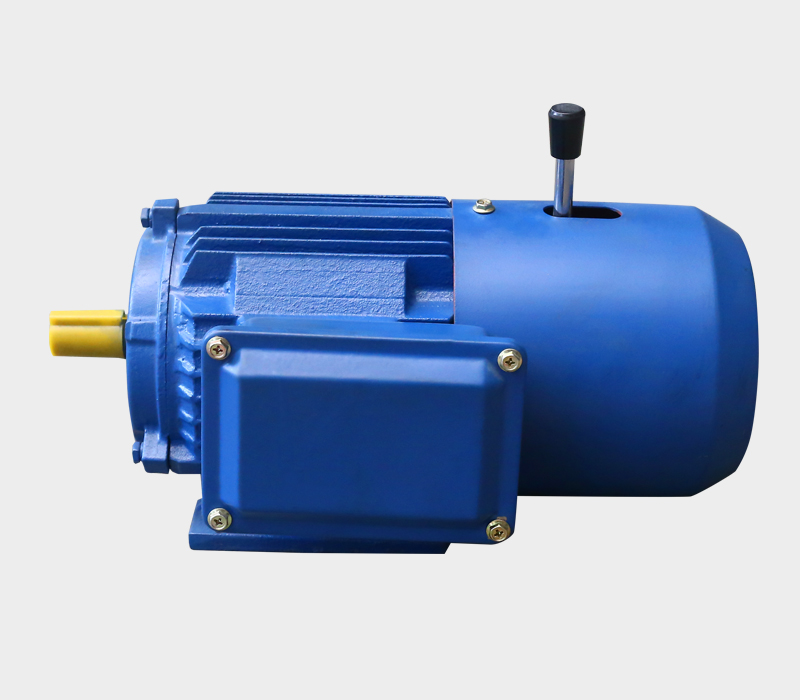

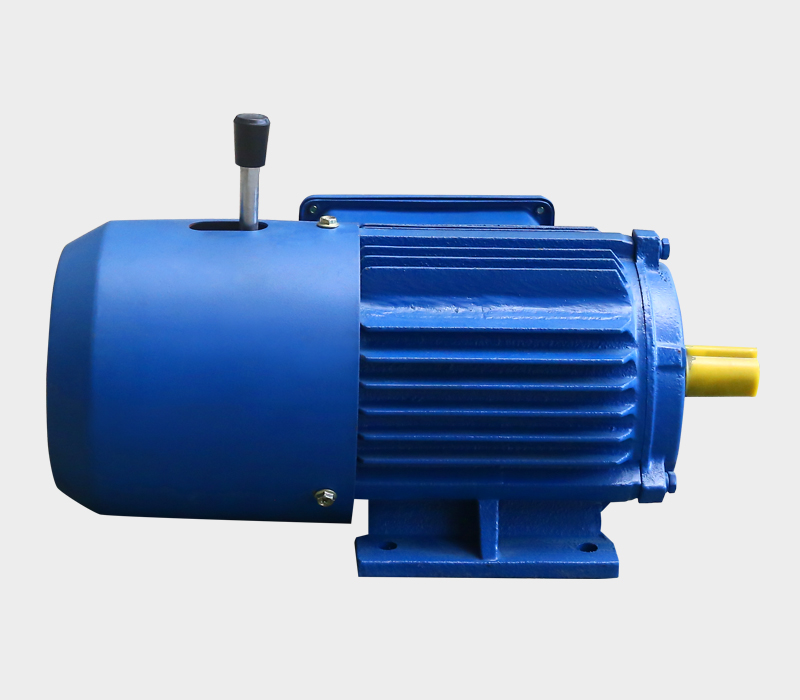

YEJ2系列电磁制动电动机是根据国际电工协会(IEC)有关规定，选用优质原材料，进行最新式整体设计的全封闭自扇式鼠笼型三相异步交流电动机并通过电磁直接制动的最新产品。这种电动机配有可移动的底座，以适应多种安装形式；它具有外形美观、结构坚固、高效、噪声低、振动小、等优点。制动分为手动和电动两种(若使用变频器启动及运行需订做)。
0
| 机座中心高：63-225mm | 绝缘等级：F级 工作制：S1 | 防护等级：IP54(或IP55) |
| 控制器电源：机座中心高H≤100mm，交流220V(转直流99V) | 机座中心高H>112mm，交流380V(转直流170V) | |
| 功率范围：0.12-45KW | 额定电压：380V(其他电压需另订协议) | 额定频率：50Hz(或60Hz) |
|
型号 |
输出功率 |
满载时 |
堵转电流 |
堵转转矩 |
最大转矩 |
静制动力矩 (N.m) |
励磁电压(W) |
惯量矩 (J) kg.m |
空载制动时间 (S) |
|||
|
转速 r/min |
电流 (A) |
效率 η(%) |
功率因数(CosΦ) |
额定电流 Ist/IN |
额定转矩Tst/TN |
额定转矩Tmax/TN |
||||||
|
YEJ2-80M1-4 |
0.55 |
1390 |
1.48 |
75.2 |
0.75 |
5.2 |
2.4 |
2.3 |
7.36 |
99 |
0.00866 |
0.20 |
|
YEJ2-80M2-4 |
0.75 |
1390 |
1.88 |
79.6 |
0.76 |
6.0 |
2.3 |
2.3 |
7.36 |
99 |
0.01073 |
0.20 |
|
YEJ2-90S-4 |
1.1 |
1390 |
2.67 |
81.4 |
0.77 |
6.0 |
2.3 |
2.3 |
14.7 |
99 |
0.01132 |
0.25 |
|
YEJ2-90L-4 |
1.5 |
1390 |
3.48 |
82.8 |
0.79 |
6.0 |
2.3 |
2.3 |
14.7 |
99 |
0.0143 |
0.25 |
|
YEJ2-100L1-4 |
2.2 |
1410 |
4.90 |
84.3 |
0.81 |
7.0 |
2.3 |
2.3 |
29.4 |
99 |
0.02733 |
0.30 |
|
YEJ2-100L2-4 |
3.0 |
1410 |
6.50 |
85.5 |
0.82 |
7.0 |
2.3 |
2.3 |
29.4 |
99 |
0.03506 |
0.30 |
|
YEJ2-112M-4 |
4.0 |
1435 |
8.56 |
86.6 |
0.82 |
7.0 |
2.3 |
2.3 |
39.2 |
170 |
0.04969 |
0.35 |
|
YEJ2-132S1-4 |
5.5 |
1440 |
11.48 |
87.7 |
0.83 |
7.0 |
2.3 |
2.3 |
73.6 |
170 |
0.11584 |
0.40 |
|
YEJ2-132S2-4 |
7.5 |
1440 |
15.29 |
88.7 |
0.84 |
7.0 |
2.3 |
2.3 |
73.6 |
170 |
0.15404 |
0.40 |
|
YEJ2-160M1-4 |
11 |
1460 |
22.16 |
89.8 |
0.84 |
7.0 |
2.2 |
2.3 |
147.2 |
170 |
0.3986 |
0.50 |
|
YEJ2-160M2-4 |
15 |
1460 |
29.59 |
90.6 |
0.85 |
7.5 |
2.2 |
2.3 |
147.2 |
170 |
0.68288 |
0.50 |
|
YEJ2-160L-4 |
18.5 |
1470 |
35.84 |
91.2 |
0.86 |
7.5 |
2.2 |
2.3 |
215.8 |
170 |
0.68667 |
0.60 |
|
YEJ2-180M-4 |
22 |
1470 |
42.43 |
91.6 |
0.86 |
7.5 |
2.2 |
2.3 |
215.8 |
170 |
0.7677 |
0.60 |
|
YEJ2-200L1-4 |
30 |
1470 |
57.42 |
92.3 |
0.86 |
7.2 |
2.2 |
2.3 |
294.3 |
170 |
1.3963 |
0.70 |
|
YEJ2-200L2-4 |
37 |
1475 |
69.70 |
92.7 |
0.87 |
7.2 |
2.2 |
2.3 |
441.5 |
170 |
2.158 |
0.80 |
|
YEJ2-225M2-4 |
45 |
1475 |
84.41 |
93.1 |
0.87 |
7.2 |
2.2 |
2.3 |
441.5 |
170 |
2.463 |
0.80 |
|
YEJ2-90S-6 |
0.75 |
910 |
2.09 |
75.9 |
0.72 |
5.5 |
2.0 |
2.1 |
14.7 |
99 |
0.01514 |
0.25 |
|
YEJ2-90L-6 |
1.1 |
910 |
2.93 |
78.1 |
0.73 |
5.5 |
2.0 |
2.1 |
14.7 |
99 |
0.01815 |
0.25 |
|
YEJ2-100L-6 |
1.5 |
920 |
3.81 |
79.8 |
0.75 |
5.5 |
2.0 |
2.1 |
29.4 |
99 |
0.03573 |
0.30 |
|
YEJ2-112M-6 |
2.2 |
935 |
5.38 |
81.8 |
0.76 |
6.5 |
2.0 |
2.1 |
39.2 |
170 |
0.07639 |
0.35 |
|
YEJ2-132S-6 |
3.0 |
960 |
7.20 |
83.3 |
0.76 |
6.5 |
2.1 |
2.1 |
73.6 |
170 |
0.15437 |
0.40 |
|
YEJ2-132M1-6 |
4.0 |
960 |
9.45 |
84.6 |
0.76 |
6.5 |
2.1 |
2.1 |
73.6 |
170 |
0.1906 |
0.40 |
|
YEJ2-132M2-6 |
5.5 |
960 |
12.62 |
86.0 |
0.77 |
6.5 |
2.1 |
2.1 |
73.6 |
170 |
0.2384 |
0.40 |
|
YEJ2-160M-6 |
7.5 |
970 |
16.97 |
87.2 |
0.77 |
6.5 |
2.0 |
2.1 |
147.2 |
170 |
0.45813 |
0.50 |
|
YEJ2-160L-6 |
11 |
970 |
24.16 |
88.7 |
0.78 |
6.5 |
2.0 |
2.1 |
147.2 |
170 |
0.59078 |
0.50 |
|
YEJ2-180L-6 |
15 |
970 |
31.37 |
89.7 |
0.81 |
7.0 |
2.0 |
2.1 |
215.8 |
170 |
0.9919 |
0.60 |
|
YEJ2-200L1-6 |
18.5 |
980 |
38.39 |
90.4 |
0.81 |
7.0 |
2.1 |
2.1 |
294.3 |
170 |
1.6609 |
0.70 |
|
YEJ2-200L2-6 |
22 |
980 |
44.30 |
90.9 |
0.83 |
7.0 |
2.1 |
2.1 |
294.3 |
170 |
1.838 |
0.70 |
|
YEJ2-225M2-6 |
30 |
985 |
59.17 |
91.7 |
0.84 |
7.0 |
2.0 |
2.1 |
441.5 |
170 |
2.639 |
0.80 |
